01 · Central security gateways
T-Series central security gateways
T10 / T20 / T30 / T50
An automotive-grade in-vehicle security-gateway range spanning entry CAN / CAN-FD designs through high-performance automotive-Ethernet platforms.
Application
T10, T20, T30 and T50 serve buses, coaches, passenger vans, trucks, heavy trucks, special-purpose vehicles, vans, converted vehicles and agricultural machinery across diesel, battery-electric and hydrogen platforms. They provide multi-segment routing, diagnostics and flashing, intrusion detection and secure boot; support GB 44495 / 44496 and R155 / R156; and work as a primary or domain gateway. Optional EDR supports GB 39732, UN-R160 and UN-R169 for event capture and accident evidence.

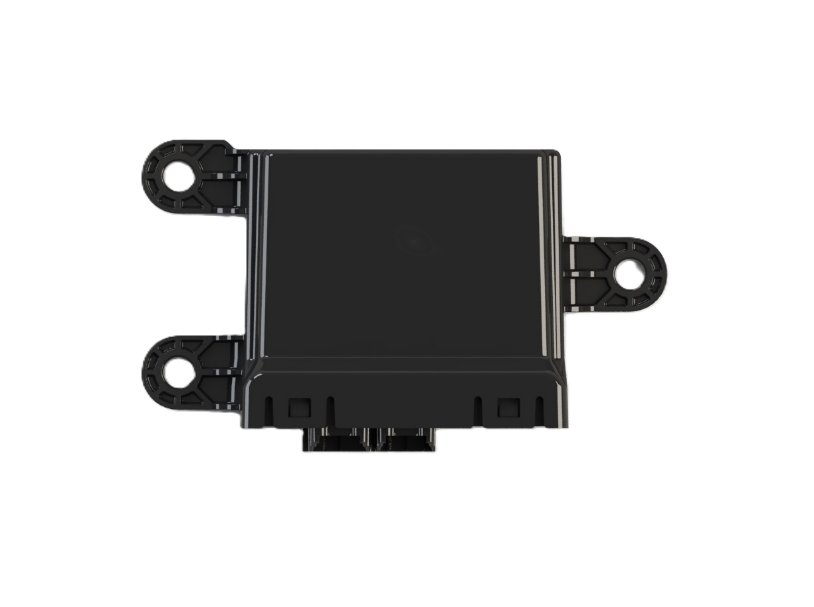

T10
Entry-level central security gateway

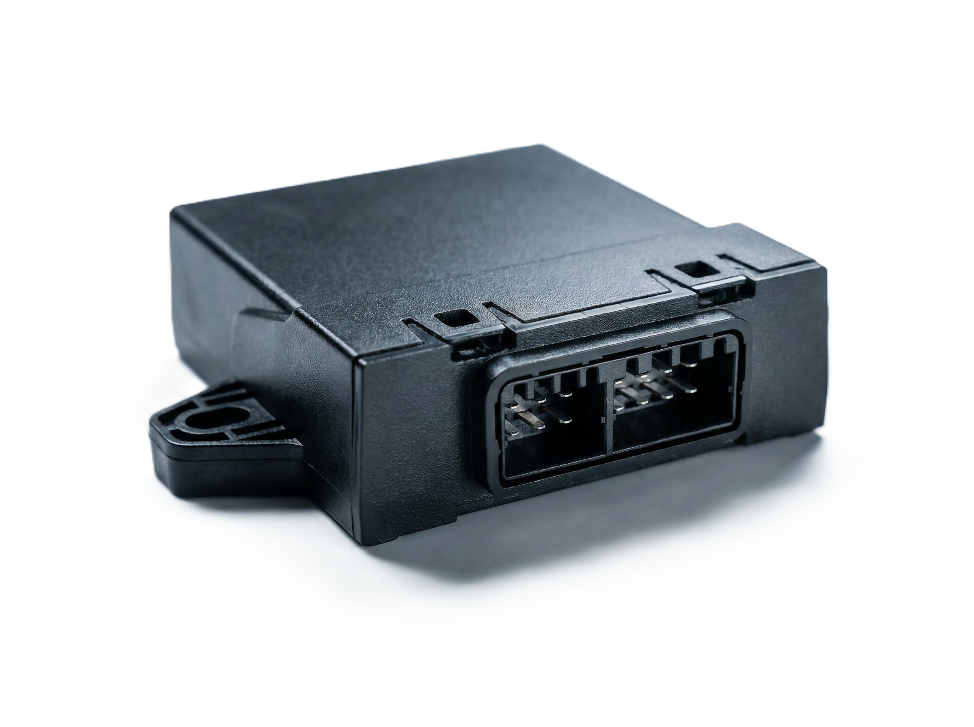

T20
Central secure gateway

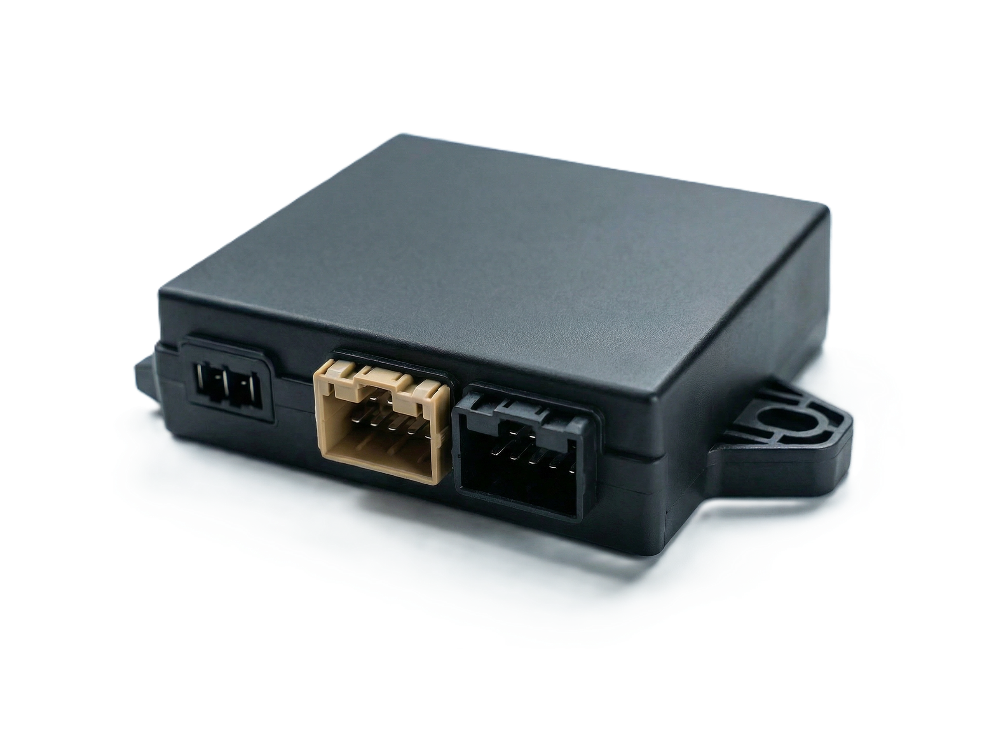

T30
Multi-network central security gateway

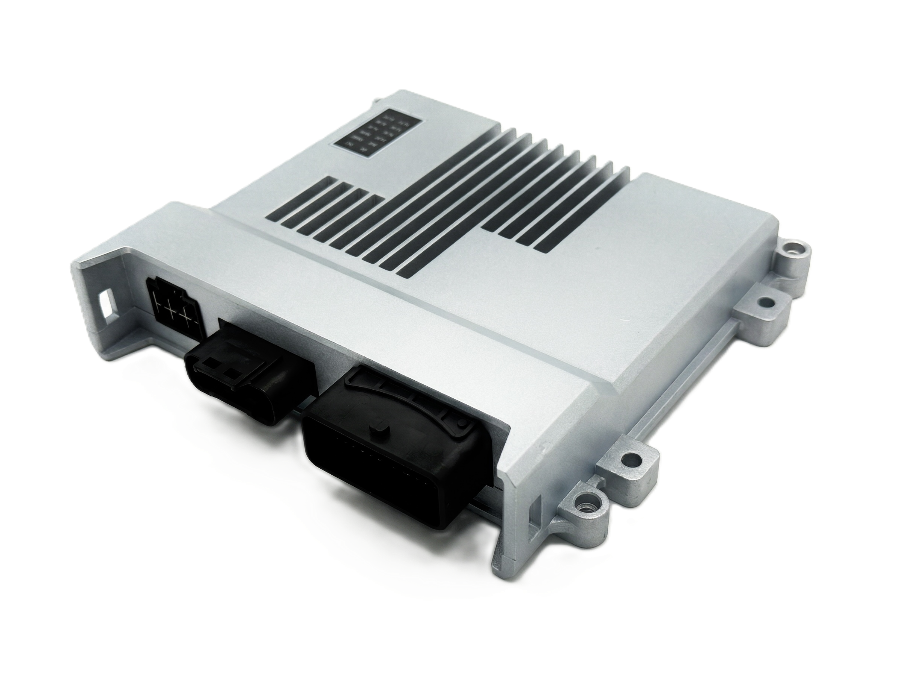

T50
High-performance central security gateway
Core capability comparison
Key interfaces and networking capabilities across the T10, T20, T30 and T50 central security gateways, helping teams match different E/E architectures.
Expand comparisonCollapse comparison
Core capability comparison
Key interfaces and networking capabilities across the T10, T20, T30 and T50 central security gateways, helping teams match different E/E architectures.
| Interface / capability | T10 | T20 | T30 | T50 |
|---|---|---|---|---|
| CAN / CAN-FD | 8 channels | 8 channels | 10 channels | 12 channels |
| LIN | — | 2 channels | 4 channels | 4 channels |
| Industrial Ethernet TX | — | — | 1 expandable | 4× 100M |
| Automotive Ethernet T1 | — | — | — | 4× 100M |
| CAN wake-up | All 8 | 2 channels | 2 channels | 2 channels |
| I/O input | — | 4 channels | 4 channels 2 with wake-up | 4 channels 2 with wake-up |
| GB 44495 / GB/T 45502 |
“—” indicates that the interface is not configured on that model. Refer to the corresponding specification PDF for detailed parameters, options and connector definitions.
